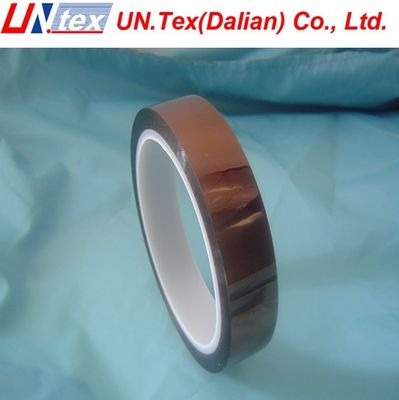

RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use

RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use
RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use

Large Image :  RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 500 sq.m
Price: quoted per size
Packaging Details: cartons and pallet
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 50000 sq.m per month

RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use

Description
Material: Polyimide Film Insulation Resistance: ≥1012Ω
Adhesive: Pressure Sensitive Acrylic Or Silicone Adhesive Or F46 Color: Amber
Elongation: ≥30% Dielectric Strength: ≥6.5KV
Halogen Free: Yes Product Name: Polyimide Film Adhesive Tape
High Light:

Industrial Polyimide Film Adhesive Tape

,

Flame Retardant Polyimide Film Adhesive Tape

,

Halogen Free Heat Resistant Polyimide Tape

RoHS Compliant Polyimide Film Adhesive Tape Flame Retardant For Industrial Use 0

Product Description:

Polyimide Film Adhesive Tape is a multi-purpose product with superior performance in terms of low & high temperature resistant and flame retardant. It is made of amber color polyimide film material, certified by UL94V-0, and has an elongation of ≥30%. It is widely used in the electronic industry due to its excellent thermal, electrical and chemical resistance, low moisture absorption and high mechanical strength. Polyimide Film Adhesive Tape is easy to use and can be applied to a variety of substrates. It is a reliable, cost-effective choice for many high performance applications.



Features:

  • Product Name: Polyimide Film Adhesive Tape
  • Adhesive: Pressure Sensitive Acrylic Or Silicone Adhesive Or F46
  • Halogen Free: Yes
  • RoHS Compliant: Yes
  • Dielectric Strength: ≥6.5KV
  • Tensile Strength: ≥35N/10mm
  • Excellent balance of electrical, chemical and physical property
  • Polyimide Label
  • Wire & cable Insulation
  • Flexible Flat Cable
  • High Temperature Resistant


Technical Parameters:

Property Value
Product Name Polyimide Film Adhesive Tape
Tensile Strength ≥35N/10mm
Thickness 12.5um~125um
Elongation ≥30%
Halogen Free Yes
RoHS Compliant Yes
Adhesion ≥1.2N/10mm
Insulation Resistance ≥1012Ω
Dielectric Strength ≥6.5KV
Temperature Range -269℃~400℃
Coverlay or Stiffener in F-PCB Excellent balance of electrical, chemical and physical property


Applications:

Polyimide Film Adhesive Tape is a solvent and flame retardant tape that is designed for use in the electronic industry. It is a high-temperature resistant tape and is RoHS compliant and halogen free. It is made of polyimide film, providing excellent electrical insulation resistance with a minimum of up to 1012Ω. It is low and high temperature resistant and is also solvent resistant, making it suitable for a wide range of applications.

Polyimide Film Adhesive Tape is designed to offer superior performance in harsh conditions and is ideal for applications where low and high temperature resistance and flame retardancy are important. It is suitable for a wide range of applications, such as insulation in electronics, automotive, aerospace, medical, and telecommunications industries. It is also highly resistant to solvents, making it suitable for use in applications where solvent-based chemicals may be present.

Polyimide Film Adhesive Tape is made in China and is RoHS compliant and halogen free, making it a safe and reliable choice for a variety of applications. It is also highly resistant to low and high temperatures, making it suitable for use in a range of electronic applications. Its flame retardant properties make it suitable for use in areas where fire safety is important.



Customization:

Custom Polyimide Film Adhesive Tape

Our Polyimide Film Adhesive Tape is made of Polyimide Film, which is ideal for use as a slot liner insulation. It has a strong adhesion of ≥1.2N/10mm and a high dielectric strength of ≥6.5KV. It is available with Pressure Sensitive Acrylic, Silicone Adhesive, or F46.

Origin: China



Support and Services:

Polyimide Film Adhesive Tape Technical Support and Service

We provide professional technical support and service for our Polyimide Film Adhesive Tape. Our experienced technicians can help you with installation, troubleshooting, and maintenance. We offer online support and telephone support so that you can get the help you need quickly and easily.

Our team can also help you with customization of the Polyimide Film Adhesive Tape to fit your unique needs. We can provide personalized solutions to meet your specific requirements.

We strive to provide the highest level of customer support and service for all our products. If you have any questions or concerns about your Polyimide Film Adhesive Tape, don't hesitate to contact us for assistance.
