Low Surface Energy PET Film Silicone Adhesive Tape 0.055mm Thickness 10mm - 500mm Width

Certification
China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

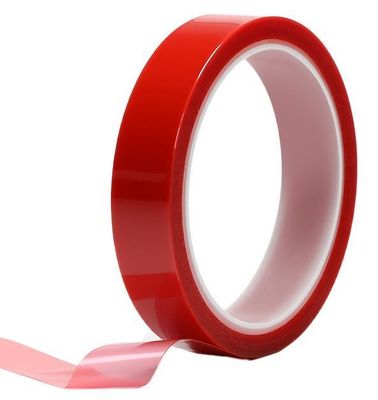

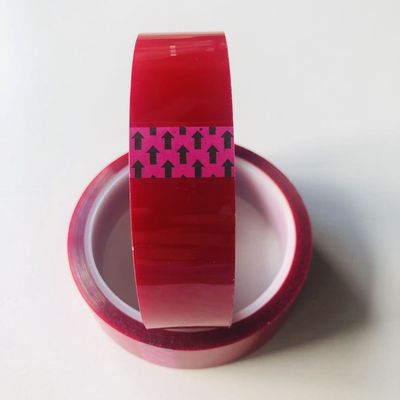

Low Surface Energy PET Film Silicone Adhesive Tape 0.055mm Thickness 10mm - 500mm Width

Low Surface Energy PET Film Silicone Adhesive Tape 0.055mm Thickness 10mm - 500mm Width
Low Surface Energy PET Film Silicone Adhesive Tape 0.055mm Thickness 10mm - 500mm Width Low Surface Energy PET Film Silicone Adhesive Tape 0.055mm Thickness 10mm - 500mm Width

Large Image :  Low Surface Energy PET Film Silicone Adhesive Tape 0.055mm Thickness 10mm - 500mm Width

Product Details:
Place of Origin: China
Model Number: 121
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sq.m
Price: quoted per size
Packaging Details: cartons
Delivery Time: 40 working days
Payment Terms: L/C, T/T
Supply Ability: 50000rolls per month

Low Surface Energy PET Film Silicone Adhesive Tape 0.055mm Thickness 10mm - 500mm Width

Description
Adhesion To Steel: ≥3.5N/25mm Adhesive: Acrylic Pressure Sensitive Adhesive
Thickness: 0.055mm Material: PET Film
Color: Various Color BDV: ≥3KV
PET Film Thickness: 0.025mm Elongation: ≥55%
Working Temp.: B Class 130°C
High Light:

500mm Width Silicone Adhesive Tape

,

PET Film Silicone Adhesive Tape

,

Heat Resistant Insulation Tape 0.055mm

Low Surface Energy PET Film 0.055mm Thickness 10mm-500mm Width silicone adhesive tape

Product Description:

This is a PET high temperature joint tape that is specially designed to provide maximum performance in challenging conditions. It is made from electrical grade low shrinkage polyester film, coated with imported silicone pressure-sensitive adhesive. This adhesive is sticky enough and durable enough to resist heat and chemicals. In addition, it is suitable for difficult-to-stick surfaces such as low surface energy film and silicone release paper.

To ensure its performance is up to standard, our high temperature joint tape is cut using advanced and specialized equipment. This helps to ensuring good adhesion performance, fast application with high efficiency, and an outstanding appearance after it has been applied.



Features:

  • Product Name: Heat Resistant Insulation Tape
  • Peel Strength: ≥6.5N/25mm
  • Color: Yellow
  • Adhesion to steel: ≥4N/25mm
  • PET film thickness: 0.035mm
  • Length: 50m
  • Suitable for electrical plastic case heat-resistant insulation


Technical Parameters:

Parameter Value
Elongation ≥60%
Adhesive Silicone
Product Name Heat Resistant Insulation Tape
Dielectric Strength ≥5KV/mm
PET film thickness 0.025mm
Thickness 0.09mm
Adhesion to steel ≥4N/25mm
Material Polyimide Film
Color Various color
Length 50m
Features Low surface energy film, spraying shielding protection, suitable for difficult-to-stick silicone release paper.


Applications:

The tape is suitable for joint bonding in the production process of silicone release paper, film and other materials that are difficult to stick. It can also be used for spraying shielding protection of electrical plastic cases and other occasions that require chemical and temperature resistance.

It can be used for various tough-to-stick products, providing a safe and reliable adhesive bond. It is also great for other applications like chemical resistance and temperature resistance.



Customization:

Custom Heat Resistant Insulation Tape

Model Number: 121
Place of Origin: China
PET Film Thickness: 0.025mm
Dielectric Strength: ≥3KV/mm
Length: 50m
Thickness: 0.055mm

Our Heat Resistant Insulation Tape is made of high-performance PET film and is designed for electrical plastic case insulation and protection. It is heat resistant and provides excellent dielectric strength. The thickness of PET film is 0.025mm and the total thickness is 0.055mm. It has a length of 50m and a model number of 121. The dielectric strength of the insulation tape is ≥3.5KV.



Support and Services:

Heat Resistant Insulation Tape Technical Support & Service

We provide technical support and service for our Heat Resistant Insulation Tape products. Our technical support and service staff are highly qualified and knowledgeable in the areas of product installation, maintenance, and troubleshooting, and are available to answer any questions you may have.

We offer free installation and maintenance services for our Heat Resistant Insulation Tape products, and are committed to providing the best customer service experience possible. If you encounter any issues while using our products, our technical support staff can assist in troubleshooting and resolving the problem.

If you would like to learn more about our Heat Resistant Insulation Tape products, please feel free to contact us with any questions or concerns. We look forward to hearing from you!
