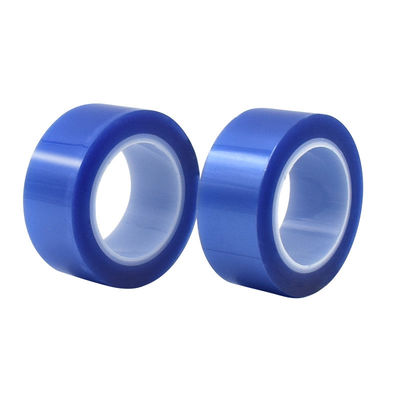

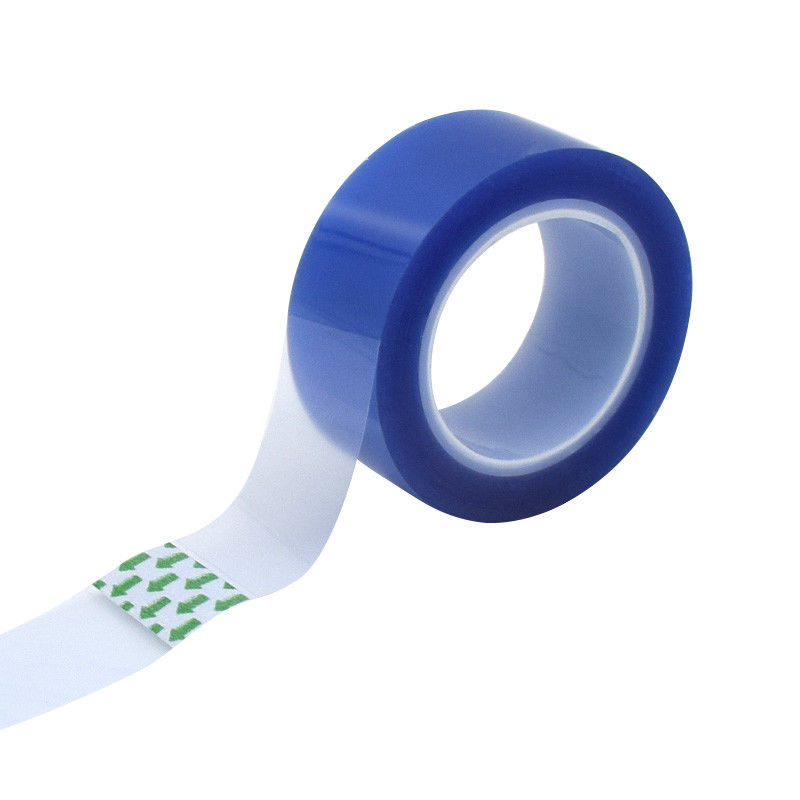

High Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength

Certification
China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

High Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength

High Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength
High Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength High Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength

Large Image :  High Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength

Product Details:
Place of Origin: China
Model Number: 1334B
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sq.m
Price: quoted per size
Packaging Details: cartons
Delivery Time: about 30 working days
Payment Terms: L/C, T/T
Supply Ability: 50000rolls per month

High Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength

Description
Length: 50m Product Name: Heat Resistant Insulation Tape
Adhesion To Steel: ≥4N/25mm PET Film Thickness: 0.035mm
Dielectric Strength: ≥5KV/mm Tensile Strength: ≥165N/25mm
Elongation: ≥60% Adhesive: Silicone
High Light:

Joint Bonding PET Tape 0.09mm

,

High Peel Strength Silicone PET Tape

,

50m Electrical Tape Heat Resistant

High Peel Strength Joint Bonding PET tape 0.09mm Thickness ≥165N tensile strengthHigh Peel Strength Joint Bonding PET Tape 0.09mm Thickness ≥165N Tensile Strength 0

Product Description:

This is one type PET high temperature joint tape, made from electrical grade low shrinkage polyester film. Coated with imported silicone pressure-sensitive adhesive, it is dried and cut by special equipment.

This tape gives excellent adhesive strength and durability with heat and chemical resistance, making it perfect to adhere to difficult surfaces such as silicone release paper and low surface energy film.



Features:

  • Product Name: Heat Resistant Insulation Tape
  • For electrical plastic case, heat resistant insulation, spraying shielding protection
  • Adhesion to steel: ≥4N/25mm
  • Dielectric Strength: ≥5KV/mm
  • Peel Strength: ≥6.5N/25mm
  • Length: 50m


Technical Parameters:

Product Name Heat Resistant Insulation Tape
PET film thickness 0.035mm
Length 50m
Adhesive Silicone
Adhesion to steel ≥4N/25mm
Width 10mm~500mm
Color Blue
Dielectric Strength ≥5KV/mm
Tensile Strength ≥165N/25mm
Elongation ≥60%
Application For electrical plastic case, suitable for difficult-to-stick silicone release paper


Applications:

The tape is ideally suited for joining difficult-to-stick materials, such as silicone release paper and film, during the production process.

It can also be used for spraying shielding protection on electrical plastic cases and in a range of other situations requiring chemical and temperature resistance.

The tape can handle all kinds of difficult-to-stick materials.



Customization:

Heat Resistant Insulation Tape

This heat resistant insulation tape is made of electrical grade low shrinkage polyester film, with spraying shielding protection, and has excellent electrical insulation and flame retardancy. It features a model number of 1334B, a place of origin of China, an elongation of ≥60%, a PET film thickness of 0.035mm, an adhesive of silicone, a material of polyimide film, and a color of yellow.
