Product Details:
|
| Color: | BLUE | Application: | Spraying Shielding Protection |
|---|---|---|---|
| Thickness: | 0.09mm | Usage: | Motor Winding, Electrical Cables |
| Product Name: | Blue Electrical Plastic Case Adhesive Tape Presure-sensitive Silicone Adhesive | Tensile Strength: | ≥165N/25mm |
| Suitable To: | Difficult-to-stick Electrical Plastic Case | Material: | PET Film |
| High Light: | Plastic Case Electrical Adhesive Tape 0.09mm,Silicone Pressure Sensitive Silicone Adhesive Tape,10mm Heat Resistant Insulation Tape |
||

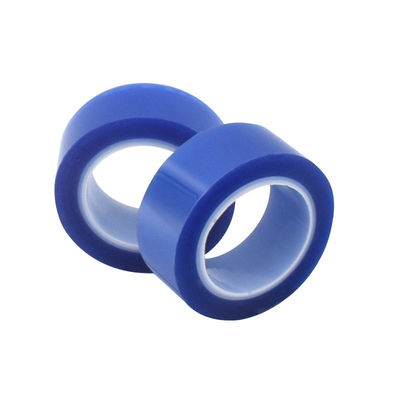

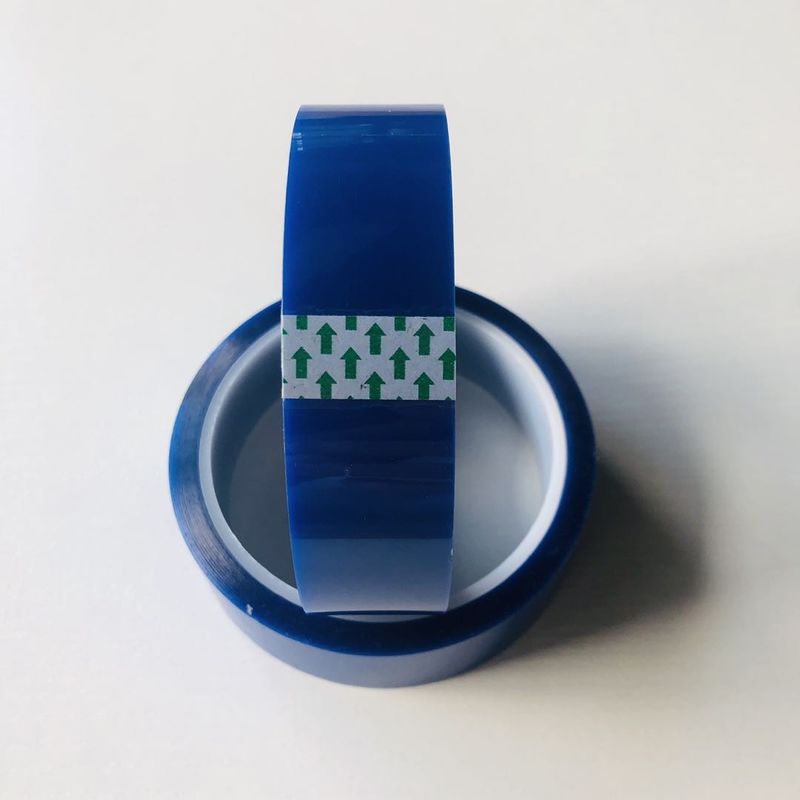

Blue Electrical Plastic Case Adhesive tape presure-sensitive Silicone adhesive suitable to difficult-to-stick electrical plastic case for spraying shielding protection.
This is a type of PET (polyethylene terephthalate) high temperature joint tape. It is made of electrical grade low shrinkage polyester film, and it is coated with imported silicone pressure-sensitive adhesive. This adhesive has been dried and cut up with the help of special equipment in order to make it as sticky and durable as possible. The tape also has a strong resistance toheat and various chemicals, and it is especially good for sticking onto materials such as difficult-to-stick silicone release paper and low surface energy film.
| Parameter | Value |
|---|---|
| Thickness | 0.09mm |
| PET film thickness | 0.035mm |
| Dielectric Strength | >=5KV/mm |
| Adhesive | Silicone pressure-sensitive |
| Tensile Strength | >=165N/25mm |
| Adhesion to steel | >=4N/25mm |
| Width | 10mm~500mm |
| Elongation | >=60% |
| Peel Strength | >=6.5N/25mm |
| Material | PET Film |
| Construction | Electrical grade low shrinkage polyester film, PET film, electrical insulation, adhesive backing |
This tape is a great choice for joint bonding during the production process of materials that are difficult to stick, such as joint bonding film. In addition, it can be used for spraying shielding protection on electrical plastic cases or any other shielding protection.
Morever, it is suitable for any other situation where chemical and temperature resistance is needed. Its efficiency and reliability when dealing with tough-to-stick materials makes it a great choice for many different fields.
We provide customized Heat Resistant Insulation Tape to satisfy your needs. The product features Model Number 1334B, Place of Origin China, Elongation ≥60%, Material Pet Film, Thickness 0.09mm, Width 10mm~500mm, Dielectric Strength ≥5KV/mm. It is suitable for difficult-to-stick silicone release paper, heat resistant insulation and for electrical plastic case.
