Product Details:
|
| Available Roll Width: | 1.0m, 1.2m | Structure: | Al Foil + Glass Cloth |
|---|---|---|---|
| Al Foil Thickness: | 18um | Total Weight: | 160g/m2 |
| Highlight: | Heat Insulation reflective foil vapour barrier,Heat Reflection reflective foil vapour barrier,1.0m reflective vapor barrier |
||

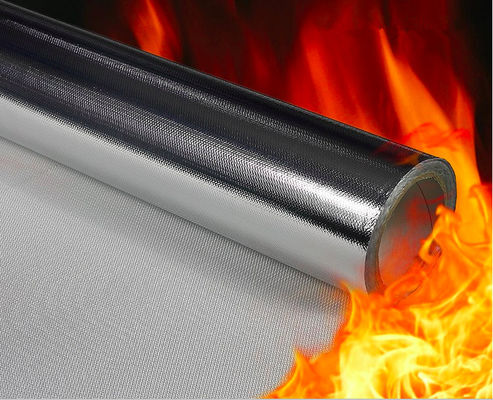

Foil-Glass Cloth Facing & Vapor Barrier for heat reflection and heat insulation
Laminated With Flame Retardant Al-Foil-Glass Cloth, Facing & Vapor Barrier For Heat Reflection And Heat Insulation
PRODUCT DESCRIPTION
A flame-retardant Foil-Glass Cloth Facing (18u foil and 8x8 mesh glass cloth, laminated with F/R glue). It enjoys good abrasive-resistance and high tensile strength, UL 723 & BS 476 Pt 6 & 7 Fire Rating approval. Excellent for HVAC thermal insulation and building thermal insulation. Very good for industrial and vessel engine room’s thermal insulation.

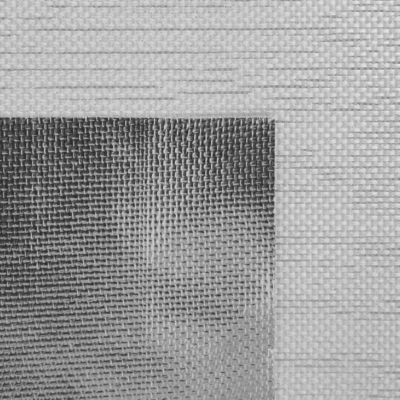

FACING COMPOSITION
| Facing Composition | Description | Value (Metric) |
| Foil | Aluminum | 0.018mm |
| Adhesive | F/R Glue | 0.022mm |
| Glass Cloth | 8x8 mesh/cm | 0.11mm |
TYPICAL PHYSICAL PROPERTIES
| Physical Properties | Value (Metric) | Test Method |
| Basis Weight | 160±10% gsm | Scale |
| Permeance (WVTR) | 1.15 ng/N.s | ASTM E96, Procedure A |
| Tensile Strength - MD | ≥300 N/25mm | ASTM D828 |
| Tensile Strength - XD | ≥250 N/25mm | ASTM D828 |
| Burst Strength | ≥120 N/cm2 | ASTM D774 |
| Low Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @-40 °F (- 40 °C) |
| High Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @ +240 °F (+116 °C) |
| Dimensional Stability | Less than 0.5% | ASTM D1204 @ 150F (65C) |
| Emissivity | 0.03 | ASTM E408 |
| Fire Rating | Less 25 / 50 - Passed | UL 723 / ASTM E84 |
| Fire Rating | Class O - Passed | BS 476 Pt 6 & 7 |

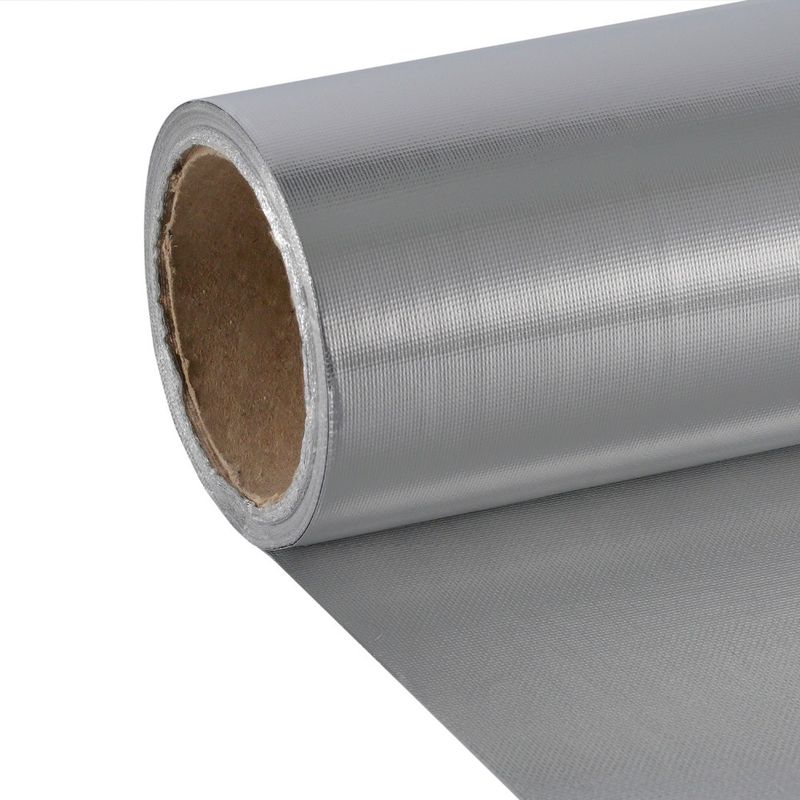

Available Roll Width: 1.0m, 1.2m
