Product Details:
|
| Material: | E-glass Fiber | Weaving: | Plain |
|---|---|---|---|
| Thickness: | 0.08~0.25 | Width: | 15mm~100mm |
| Length: | 30m,50m, At Buyer's Request | ||
| High Light: | E Glass Glass Cloth Insulation Tape,Glass Cloth Insulation Tape 0.08mm,0.25mm glass cloth adhesive tape |
||

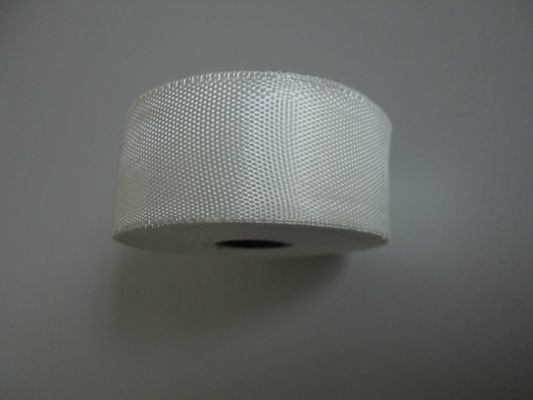

E-Glass Cloth Tape, H Grade, Plain Weave, Color White, Parafin Type& Non-Parafin Type,Moter Coil Wrapping
Application: Electrical insulation, used on motor and transformer, cable etc. Soft and flexible. Good adaption to varnish.
E-fiberglass, alkali-free, paraffin type
| TYPE | T | Tol | W | Tol | L | Tol. | Weight | Tol | Tensile Strength |
| mm | mm | mm | mm | m | m | g/m | % | ≥N/W | |
| SW-EI | 0.10 | ±0.01 | 38 | ±2 | 30 | +1/-0 | 3.2 | 10% | 700 |
| 0.13 | ±0.013 | 19 | ±2 | 30 | +1/-0 | 3.1 | 10% | 700 | |
| 0.13 | ±0.013 | 25 | ±2 | 30 | +1/-0 | 4.3 | 10% | 700 | |
| 0.13 | ±0.013 | 38 | ±2 | 30 | +1/-0 | 6.4 | 10% | 700 | |
| 0.18 | ±0.018 | 25 | ±2 | 30 | +1/-0 | 5.7 | 10% | 700 |
