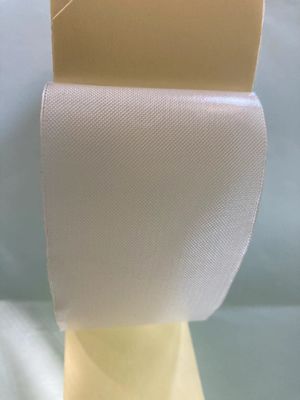

0.16mm Silicone Based Adhesive Tape

0.16mm Silicone Based Adhesive Tape
0.16mm Silicone Based Adhesive Tape 0.16mm Silicone Based Adhesive Tape 0.16mm Silicone Based Adhesive Tape

Large Image :  0.16mm Silicone Based Adhesive Tape

Product Details:
Place of Origin: CHINA
Brand Name: No
Certification: RoHS
Model Number: 652L
Payment & Shipping Terms:
Minimum Order Quantity: 3000m2
Price: by quote
Packaging Details: Export carton case
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 50,000m2 per month

0.16mm Silicone Based Adhesive Tape

Description
Adhesive Type: Acrylic Adhesive Base Material: Imported Glass Cloth
Releasing Paper: Yellow Releasing Paper (outside) Thermal Grade: F
Width: 10mm~500mm Length: 30m Or At Buyer's Request
Base Thickness: 0.10mm Total Thickness: 0.16mm
Highlight:

0.16mm silicone based adhesive tape

,

F grade silicone based adhesive tape

,

Electrical insulation silicone tape double sided

Glass cloth adhesive tape ,F grade ,Acrylic adhesive tape , 0.16mm thick, Electrical insulation



Glass cloth tape

Type:652L


Product introduction:

Base material Glass cloth
Adhesive Acrylic adhesive
Releasing paper Yellow adhesive paper


Product feature:

Strong heat resistance, strong adhesion, and tear resistance



Product application:
* Glass cloth tape has tensile strength and strong adhesion,
Widely used for wrapping transformer coil leads.
* Due to the explosion-proof and anti-leak properties of the glass tape, it is often used as insulation wrap for high-energy lithium batteries.
* Can be used for various high temperature sandblast protection and high temperature shield protection.

0.16mm Silicone Based Adhesive Tape 0

Model 652L
Appearance White tape, smooth surface, free of wrinkles and bubbles.
Total thickness mm 0.16±0.01
Glass cloth thickness mm 0.10±0.01
Tensile strength N/10mm ≥210
Breakdown elongation % ≥3
Adhesion (on steel surface) N/cm ≥4
Ball tack (14#) cm ≤10
Releasing paper Single sided
Supplied size

Roll supply, depending on user's demand

Width 20-500mm, roll length 30m±0.3m
