H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation

MOQ: 500m2
Price: Usd1~5/roll
Standard Packaging: Export carton case
Delivery Period: 35 working days
Payment Method: L/C,T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Certification
RoHS
Model Number
251
Color:
Amber Transparent
Base Material:
Polyimide Film
Adhesive:
Silicone Pressure Sensitive Adhesive
Thickness:
0.03~0.10mm
Tensile Strength:
≥35N/cm
Elongation:
≥30%
Electrical Strength:
≥70MV/m
Working Temperature:
200℃
Highlight:

200℃ Working Temperature Polyimide Film Adhesive Tape

,

Amber Transparent PI Film Adhesive Tape

,

High Tensile Strength Kapton Tape

Product Description
H Class Polyimide Film Adhesive Tape With Silicon Adhesive For Insulation
Product Description
The Polyimide Film Adhesive Tape features a PI film base for excellent heat resistance, strength, and dielectric performance, combined with a high-temperature silicone adhesive for reliable bonding. As a Class H insulation material, it is ideal for demanding applications in motors, electrical equipment, and electronics.
Technical Parameters
Parameters Value
Tensile strength ≥35N/10mm
Electrical strength ≥70MV/m
Elongation ≥30%
Working Temp. 200℃
Thickness 0.03~0.10mm
Advantages
  • Exceptional heat and electrical resistance: Class H (180°C) rating with high dielectric strength for reliable insulation under extreme conditions.
  • Secure yet clean adhesion: Strong bond without residue, protecting components during application and removal.
  • Enhanced durability: Resistant to punctures, moisture, solvents, and corona discharge for long-lasting performance in demanding environments.
  • Optimized for automation: Uniform, bubble-free rolls with precision-cut edges enable smooth, reliable high-speed processing.
Applications
  • Electronics: PCB gold finger masking, SMT insulation, wave soldering protection.
  • Motor/Transformer: Class H coil wrapping and fixation for high-temperature integrity.
  • Lithium Batteries: Secure tab fixation and internal insulation, heat and electrolyte resistant.
  • Flexible Circuits: FPC reinforcement and moisture insulation in high-temperature assembly.

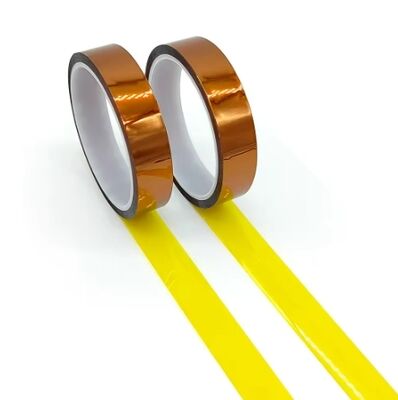

H Class Polyimide Film Adhesive Tape product image
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

L
Luca
Italy Mar 5.2026
Helpful (1)
They offer a wide variety of tapes, so you can get everything you need in one place.
A
Anil
India Jan 23.2026
Helpful (1)
Thanks to UN.Tex for recommending the models I needed. They're diligent and responsible.
F
F*z
Saudi Arabia Oct 23.2025
Helpful (1)
UN.Tex's tape is really good quality, so you can totally trust both their products and their supply.
