Commercial Grade Foil Backed Paper Insulation

MOQ:	6000m2
Price:	by quote
Standard Packaging:	Each roll packed by craft paper and then onto pallet
Delivery Period:	30 working days
Payment Method:	L/C, T/T
Supply Capacity:	50,000m2 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Model Number

WPSK-455A

Available Roll Width:

1.25m,1.30m, 1.37m

Structure:

White PP Film + Fiberglass Scrim + Kraft Paper

Total Weight:

85g/m2

Film:

White PP Film 30micron

Highlight:

Commercial foil backed paper insulation

1.25m foil backed paper insulation

1.37m foil faced building paper

Product Description

Product Description

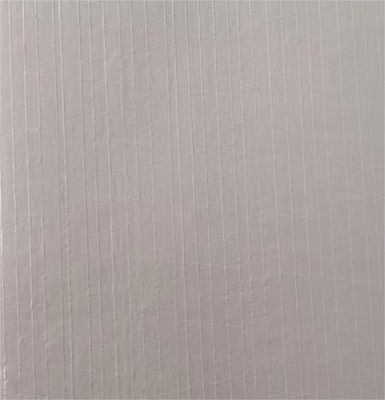

Commercial Grade Polypropylene-Scrim-Kraft(PSK) Facing. It consists of 30um white PP film, closer 3-way fiberglass scrim, 50gsm F/R kraft paper. Excellent facing and vapor barrier of glasswool blanket or board. Combine with glasswool blanket, it is good as roof and wall insulation of metal building. Very good for air-conditioning ductwork thermal insulation when laminating on glasswool blanket or board.

Facing Composition

Facing Composition	Description	Value (Metric)
White film	Polypropylene(PP)	30 micron
Reinforcing - MD	Fiberglass	16/100 mm
Reinforcing - XD	Fiberglass	16/100 mm
Adhesive	Glue	------
Kraft	Natural	50 gsm

Typical Physical Properties

Physical Properties	Value (Metric)	Test Method
Basis Weight	85±10% gsm	Scale
Permeance (WVTR)	1.15 ng/N.s	ASTM E96, Procedure A
Tensile Strength - MD	≥160 N/25mm	ASTM D828
Tensile Strength - XD	≥105 N/25mm	ASTM D828
Burst Strength	≥65 N/cm2	ASTM D774
Low Temperature Resistance	Remains Flexible No Delamination	ASTM D1790 4 hrs @-40 °F (- 40 °C)
High Temperature Resistance	Remains Flexible No Delamination	ASTM D1790 4 hrs @ +240 °F (+116 °C)
Dimensional Stability	Less than 0.5%	ASTM D1204 @ 150F (65C)
Light reflectance	85%	ASTM C523

Available Roll Width: 1.25m, 1.3m, 1.37m

Remarks

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: +0.5m/-0m, Jumbo Roll ±0.5%.

3. The products should be stored at room temperature, kept away from wet and heat source.

4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
