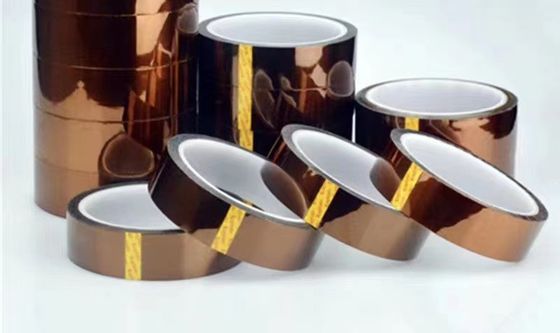

H Grade Polyimide Film Adhesive Tape

H Grade Polyimide Film Adhesive Tape
H Grade Polyimide Film Adhesive Tape
H Grade Polyimide Film Adhesive Tape H Grade Polyimide Film Adhesive Tape H Grade Polyimide Film Adhesive Tape

Large Image :  H Grade Polyimide Film Adhesive Tape

Product Details:
Place of Origin: CHINA
Certification: RoHS
Model Number: K2321
Payment & Shipping Terms:
Minimum Order Quantity: 500m2
Price: Usd1~5/roll
Packaging Details: Export carton case
Delivery Time: 35 working days
Payment Terms: L/C,T/T
Supply Ability: 50,000m2 per month
Contact Now

H Grade Polyimide Film Adhesive Tape

Description
Base Material: Polyimide Film Adhesive: Silicone Adhesive
Thickness: 60um Break Down Voltage: ≥5% KV
Tensile Strength: ≥40 N/10mm Adhesion Strength: ≥2.4 N/10mm
Working Temperature: -73~280℃ Color: Amber Transparent
Length: 33m, 33~200m For 500mm Width Width: 3mm~500mm
Highlight:

H Grade Polyimide Film Adhesive Tape

,

25um Polyimide Film Adhesive Tape

,

3mm polyimide film adhesive

H Grade Polyimide Film Adhesive Tape
PI Film Heat-Resistant Protection Film
Base Film: PI Film
Adhesive: Silicone Adhesive
Appearance: Amber transparent, surface smooth, no crepe, bubble, foreign objects, no tearing and transfer of glue layer when unwinding
Technical Specifications
Type # 2321 2321L
Total Thickness (mm) 0.06
Break Down Voltage (KV) ≥5%
Tensile Strength (N/10mm) ≥40
Adhesion Strength (N/10mm) ≥2.4
Working Temperature (°C) -73~280
Chemical Resistance (20% HCL NaOH/10Hrs) Bonding well, no delamination, no glue layer transfer
Releasing Film (mm) No 0.075mm
Key Characteristics
  • Key Properties: High mechanical strength, excellent electrical insulation, dimensional stability, and resistance to high temperatures, solvents, and water.
  • Temperature Rating: Long-term operation at 220°C; short-term exposure up to 280°C.
Applications
  • Bonding Protection: Ideal for SMT wave/reflow soldering temperature shielding, and for protecting electronic switches, PCB gold fingers, SMD transformers, relays, and other heat- and moisture-sensitive components.
  • Insulation Wrapping: Used for high-temperature coil insulation in H-class motors and transformers, securing coil ends, and providing reliable insulation in demanding thermal environments.

H Grade Polyimide Film Adhesive Tape 0  H Grade Polyimide Film Adhesive Tape 1

Tag:

25um Polyimide Film Adhesive Tape,

Polyimide Film Adhesive Tape H Grade,

Single Side Coated polyimide high temperature tape
