H-Class Polyester Glass Fiber Binding Tape Resin Impregnated
  • name
  • name

H-Class Polyester Glass Fiber Binding Tape Resin Impregnated

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
UNTEX
Model Number
H200-W
Document
H200-W 0.2mm(UN.Tex).pdf
Soluble Resin Content:
≥ 90%
Tensile Strength Before Curing:
≥ 1200/2000 N/cm
Thermal Class:
H(200℃)
Loss Of Weight At Calcination:
26±2%
Thicknesss:
0.2/0.3mm
Volatile Content:
≤ 2%
Dielectric Strength:
≥ 12KV/mm
Maximum Pull While Banding:
≥ 600/1000 N/cm
Highlight:

Polyester Glass Fiber Binding Tape

,

Resin Impregnated Glass Cloth Tape

,

H-Class Glass Cloth Insulation Tape

Product Description
Product Overview

H-Class Polyester Glass Fiber Binding Tape is made from alkali-free glass fiber impregnated with heat-curing unsaturated polyester resin. Its semi-cured, open-mesh structure allows smooth unwinding and easy handling while helping reduce fraying and deformation during application.

During heat curing, the resin flows through the fiberglass structure and forms a reinforced insulating layer. Designed for H-Class electrical insulation systems with a thermal rating of 200°C, this tape provides mechanical reinforcement and electrical insulation for motor windings, transformer coils, and other high-voltage electrical components.

Technical Parameters
Thickness 0.2 / 0.3 mm
Thermal Class H (200°C)
Key Advantages
  • High Thermal Rating: Suitable for H-Class insulation systems rated at 200°C.
  • Mechanical Reinforcement: Provides firm binding and support for coils and electrical windings.
  • Electrical Insulation: Forms an insulating layer after heat curing.
  • Easy Handling: The open-mesh structure supports smooth unwinding and convenient application.
  • Heat-Curing Performance: Resin curing helps secure the binding structure and reinforce electrical components.
Applications
  • Motor and generator winding and end-turn binding
  • Transformer coil fastening, clamping, and reinforcement
  • Instrument transformers and high-voltage electrical equipment
  • Forming and reinforcement of valve elements in lightning arresters
Frequently Asked Questions
1. What is the thermal class of this binding tape?

The tape is designed for H-Class electrical insulation systems with a thermal rating of 200°C.

2. What is the function of the resin impregnation?

The heat-curing unsaturated polyester resin flows through the fiberglass structure during curing, helping form a reinforced binding layer.

3. What are the main applications of this tape?

It is used for binding and reinforcing motor windings, generator coils, transformer coils, and components in high-voltage electrical equipment.

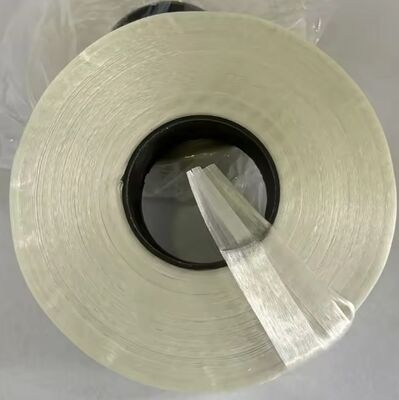

H-Class polyester glass fiber binding tape roll showing semi-cured open-mesh fiberglass structure impregnated with heat-curing polyester resin
