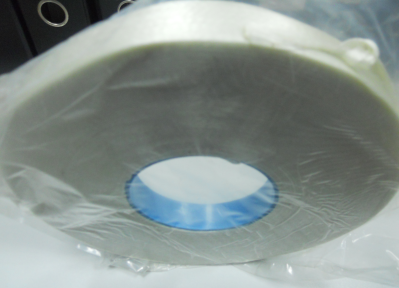

Polyester Glass Fiber Binding Tape Resin Impregnated H-Class 200℃
  • name
  • name

Polyester Glass Fiber Binding Tape Resin Impregnated H-Class 200℃

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
UNTEX
Model Number
H200-W
Document
H200-W 0.2mm(UN.Tex).pdf
Thermal Class:
H(200℃)
Soluble Resin Content:
≥ 90%
Dielectric Strength:
≥ 12KV/mm
Maximum Pull While Banding:
≥ 600/1000 N/cm
Tensile Strength Before Curing:
≥ 1200/2000 N/cm
Thicknesss:
0.2/0.3mm
Loss Of Weight At Calcination:
26±2%
Volatile Content:
≤ 2%
Highlight:

Polyester glass fiber binding tape

,

Resin impregnated H-class tape

,

Glass cloth insulation tape 200℃

Product Description
Polyester Glass Fiber Binding Tape Resin Impregnated H-Class 200℃
Product Overview

H-Class Polyester Glass Fiber Binding Tape is made from alkali-free glass fiber impregnated with heat-curing unsaturated polyester resin. Its semi-cured open-mesh structure provides smooth unwinding and easy application without fraying or deformation.

During heat curing, the resin flows through the fiberglass and forms a strong, stable insulating layer. Designed for H-Class insulation systems up to 200°C, the tape provides excellent thermal resistance, mechanical strength, and electrical insulation properties.

Technical Parameters
Thickness 0.2/0.3mm
Thermal Class H (200℃)
Key Advantages
  • H-Class thermal performance suitable for insulation systems up to 200°C
  • Strong mechanical binding for coils, windings, and electrical components
  • Excellent electrical insulation after heat curing
  • Easy application with smooth unwinding and reduced fraying
  • Efficient curing for stable mechanical reinforcement
Applications
  • Motor and generator winding and end-turn binding
  • Transformer coil fastening, core clamping, and reinforcement
  • Reinforcement of instrument transformers and high-voltage equipment
  • Valve element forming in lightning arresters
Frequently Asked Questions
What is the thermal class of this binding tape?

It is designed for H-Class insulation systems with a thermal class of 200°C.

What thicknesses are available?

The standard thicknesses are 0.20 mm and 0.30 mm.

Where is this tape used?

It is mainly used for motors, generators, transformers, lightning arresters, and high-voltage electrical equipment.
