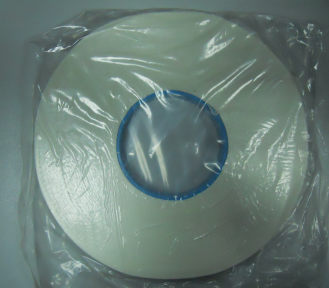

Polyester Resin Impregnated Glass Banding Tape F Class
  • name
  • name

Polyester Resin Impregnated Glass Banding Tape F Class

Price: based on size and quantity
Standard Packaging: cartons and pallets
Delivery Period: about 20 days
Payment Method: T/T
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
UN.Tex
Thickness:
0.2mm/ 0.3mm
Thermal Class:
F Class
Volatile Content:
≤ 2%
Loss Of Weight At Calcination:
26±2%
Soluble Resin Content:
≥ 90%
Tensile Strength Before Curing:
≥1000/ ≥1500 N/cm
Maximum Pull While Banding:
≥ 500/ ≥800 N/cm
Dielectric Strength:
≥ 12 KV/mm
Highlight:

Polyester resin glass banding tape

,

Insulation adhesive tape with polyester resin

,

Glass banding tape for insulation

Product Description
Polyester Resin Impregnated Glass Banding Tape F Class
Product Overview

Polyester Resin Impregnated Glass Banding Tape is made from high-strength fiberglass tape impregnated with polyester resin. It is designed for coil binding, securing, and mechanical reinforcement in electrical insulation applications. The tape provides good tensile strength, dimensional stability, and bonding performance after curing. It is suitable for use in motors, transformers, generators, and other electrical equipment requiring reliable mechanical binding and Class F insulation performance.

Specifications
Insulation Class Class F
Thickness 0.20 mm / 0.30 mm
Key Features
  • Class F insulation, suitable for applications up to 155°C
  • High tensile strength for secure mechanical binding
  • Polyester resin impregnated fiberglass construction
  • Good dimensional stability during application
  • Good bonding strength after curing
Applications
  • Motor coil binding
  • Transformer winding binding
  • Generator coil reinforcement
  • Electrical winding securing
  • Mechanical reinforcement of insulated coils
Frequently Asked Questions
What insulation class is this banding tape?

This product is designed for Class F insulation applications, with a thermal class of 155°C.

What thicknesses are available?

The standard thickness options are 0.20 mm and 0.30 mm.

What is the tape made of?

It consists of a fiberglass substrate impregnated with polyester resin.

Where is it used?

It is mainly used for binding and mechanically reinforcing coils and windings in motors, transformers, generators, and other electrical equipment.
