Polyimide Adhesive Tape Durable& Heat-resistant& Insulating& High-strength Adhesion

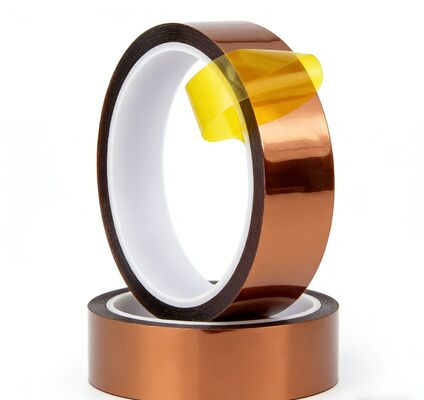

Large Image : Polyimide Adhesive Tape Durable& Heat-resistant& Insulating& High-strength Adhesion

Product Details:

Place of Origin:	CHINA
Certification:	RoHS
Model Number:	K2321

Payment & Shipping Terms:

Minimum Order Quantity:	500m2
Price:	based on sizes and quantity
Packaging Details:	Export carton case
Delivery Time:	35 working days
Payment Terms:	L/C,T/T
Supply Ability:	50,000m2 per month

Contact Now

Polyimide Adhesive Tape Durable& Heat-resistant& Insulating& High-strength Adhesion

Description

Features:	Polyimide Film Adhesive Tape	Product Category:	Polyimide Film Adhesive Tape
Halogen Free:	Yes	Thickness:	30um~100um
Standard Roll Length:	33 Meters	Base Material Thickness Options:	7.5 µm, 12.5 µm, 25 µm, And 50 µm
BDV:	≥2.0KV	Working Temp.:	180℃ (long Term)
Temperature Range:	-73℃ To 260℃	Tensile Strength:	≥25N/10mm
Adhesion:	≥1.8N/10mm	Application:	High Temperature Applications
Highlight:	polyimide adhesive tape heat-resistant , polyimide film tape high-strength adhesion , insulating adhesive tape durable

Polyimide Adhesive Tape - Durable, Heat-resistant, Insulating & High-strength Adhesion

Product Description

Engineered for demanding applications, this polyimide adhesive tape delivers exceptional high-temperature resistance, reliable electrical insulation, and strong adhesion. It ensures secure, long-lasting bonds in challenging environments such as PCB electrical insulation, with customizable thicknesses available to meet specific requirements.

Technical Specifications

RoHS Compliant	Yes
Adhesive Type	Pressure Sensitive Silicone Adhesive
Temperature Range	-73℃ to 260℃
Adhesion Strength	≥1.8N/10mm

Key Advantages

Exceptional Thermal & Electrical Performance: Excellent high-temperature resistance and electrical insulation for demanding applications
Outstanding Durability: High mechanical strength and strong chemical resistance ensure reliable, long-lasting protection
Secure Bonding with Built-in Safety: Features inherent flame retardancy and reliable pressure-sensitive adhesion
Comprehensive Capability: Balanced combination of key properties ideal for challenging industrial environments

Primary Applications

Electronics Manufacturing: PCB solder masking, FPC (flexible printed circuit) fixation, and insulation of motor and transformer coils
Semiconductor Processing: High-precision temporary masking during etching, plating, and ion implantation stages
Industrial & Aerospace: High-temperature paint masking, motor insulation, and wire harness protection in demanding environments
