Resin Impregnated Weftless Banding Tape Glass Cloth Insulation Tape 25mm Wide 0.30mm thickness

Certification
China UN.Tex (Dalian) Co.,Ltd certification
China UN.Tex (Dalian) Co.,Ltd certification
I'm Online Chat Now

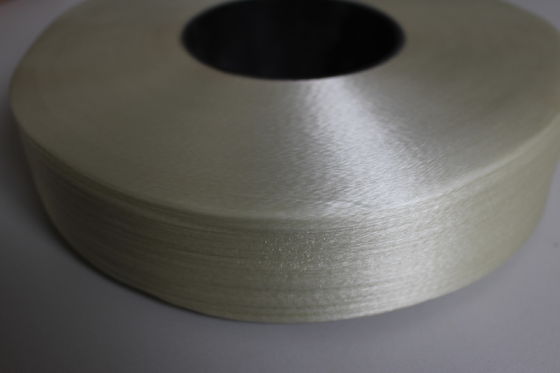

Resin Impregnated Weftless Banding Tape Glass Cloth Insulation Tape 25mm Wide 0.30mm thickness

Resin Impregnated Weftless Banding Tape Glass Cloth Insulation Tape 25mm Wide 0.30mm thickness
Resin Impregnated Weftless Banding Tape Glass Cloth Insulation Tape 25mm Wide 0.30mm thickness Resin Impregnated Weftless Banding Tape Glass Cloth Insulation Tape 25mm Wide 0.30mm thickness

Large Image :  Resin Impregnated Weftless Banding Tape Glass Cloth Insulation Tape 25mm Wide 0.30mm thickness

Product Details:
Place of Origin: China
Brand Name: UN.TEX
Payment & Shipping Terms:
Minimum Order Quantity: 10000m
Price: quoted as per size and quantity
Packaging Details: cartons and pallet
Delivery Time: about 35 days
Payment Terms: L/C, T/T
Supply Ability: 10000rolls per month

Resin Impregnated Weftless Banding Tape Glass Cloth Insulation Tape 25mm Wide 0.30mm thickness

Description
Soluble Resin Conten: ≥90% Dielectric Strength: ≥12KV/mm
Product Name: Resin Impregnated Weftless Banding Tape Width: 25mm
Thickness: 0.30mm Breaking Strenth: ≥250N/10mm X100mm
Volatile Content: ≤2 Application: Electrical Insulation
Thermal Class: H Class

Product Description:

With its ivory color and thickness of 0.30mm, this Insulation Glass Cloth Tape is both durable and reliable. It is designed to withstand even the most demanding conditions, providing long-lasting protection against heat, moisture, and other environmental factors.

In addition to its exceptional insulation properties, the Resin Impregnated Weftless Banding Tape also boasts a breaking strength of ≥250N/10mm X100mm. This means that it can provide reliable and secure support for a wide range of mechanical components, making it an essential component for many industrial applications.

With a volatile content of ≤2, this Glass Cloth Insulant Tape is also safe and easy to work with. It is designed to be easy to handle and apply, making it an ideal choice for both professional and DIY applications.

Overall, the Resin Impregnated Weftless Banding Tape is a high-quality and versatile Glass Fibre Insulation Tape that is perfect for a wide range of electrical and mechanical applications. Whether you are looking for a reliable insulation solution for your home or business, or need a durable and robust tape for industrial use, this Insulation Glass Cloth Tape is the perfect choice.



Features:

  • Product Name: Glass Cloth Insulation Tape
  • Application: Electrical Insulation
  • Material: Unsaturated Polyester Resin + E-glassfiber
  • Thickness: 0.30mm
  • Length: 200m
  • Soluble resin content: ≥90%


Technical Parameters:

Product Name Resin Impregnated Weftless Banding Tape
Material Unsaturated Polyester Resin + E-glassfiber
Color Ivory
Thickness 0.30mm
Width 25mm
Volatile Content ≤2
Resin Content 26±2 %
Breaking Strength ≥250N/10mm X100mm
Application Electrical Insulation
Thermal Class H Class 220℃


Applications:

The glass cloth insulation tape is made from glass cloth that is impregnated with a soluble resin. This gives the tape a high dielectric strength of at least 12KV/mm. This makes the tape ideal for use in electrical applications where there is a need for insulation against high voltage and electrical currents.

The UN.TEX Resin Impregnated Weftless Banding Tape is ideal for use in a variety of occasions and scenarios. It is commonly used in electrical engineering to provide insulation between electrical components. It is also used for wrapping and bundling wiring and cables, as well as for repairing and reinforcing electrical insulation.

The tape is available in a width of 25mm, making it easy to work with and apply. The ivory color of the tape makes it easy to identify and distinguish from other tapes and components in electrical applications.

The Resin Impregnated Weftless Banding Tape from UN.TEX has a high soluble resin content of at least 90%. This ensures that the tape has excellent adhesive properties, making it easy to apply and ensuring that it stays in place. The tape also has excellent resistance to moisture and chemicals, ensuring that it maintains its insulation properties even in harsh environments.

In summary, the UN.TEX Resin Impregnated Weftless Banding Tape is a high-quality glass cloth insulant tape that is ideal for use in electrical engineering applications. Its high dielectric strength, excellent adhesive properties, and resistance to moisture and chemicals make it the perfect choice for a wide range of occasions and scenarios.

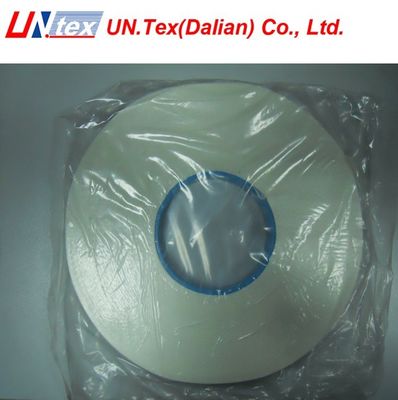

Packing and Shipping:

Product Packaging:

  • Rolls of Glass Cloth Insulation Tape
  • Pack of 6 rolls
  • Each roll measures 50mm x 33m
  • Product weight: 1.5kg
  • Product dimensions: 200mm x 200mm x 100mm

Shipping:

  • Shipping weight: 2kg
  • Shipping dimensions: 250mm x 250mm x 150mm
  • Shipping carrier: FedEx
  • Shipping options: Standard or Express
  • Shipping cost calculated at checkout
