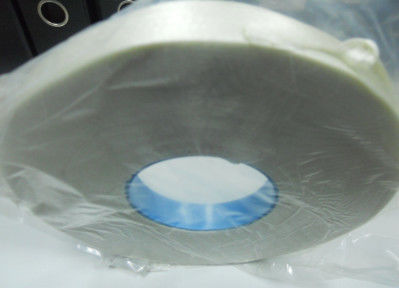

E-Glassfiber Glass PG Insulation Banding Tape 0.3mm H Class

E-Glassfiber Glass PG Insulation Banding Tape 0.3mm H Class
E-Glassfiber Glass PG Insulation Banding Tape 0.3mm H Class E-Glassfiber Glass PG Insulation Banding Tape 0.3mm H Class

Large Image :  E-Glassfiber Glass PG Insulation Banding Tape 0.3mm H Class

Product Details:
Place of Origin: China
Brand Name: UN.TEX
Model Number: H200
Payment & Shipping Terms:
Minimum Order Quantity: 1000rolls
Price: quoted per size
Packaging Details: cartons and pallet
Delivery Time: about 40 working days
Payment Terms: L/C, T/T
Supply Ability: 50000rolls per month

E-Glassfiber Glass PG Insulation Banding Tape 0.3mm H Class

Product Name: H Class E-Glassfiber PG Banding Tape Width: 25mm
Temperature Range: 180℃ Application: Electrical Insulation
Breaking Strenth: ≥2000N/10mm Before Curing Volatile Content: ≤2%
Loss Of Weight: 26±2 %
High Light:

0.3mm H Class Insulation Banding Tape


Glass PG Insulation Banding Tape


E-Glassfiber Insulation Tape

Product Description:

Banding Tape, also known as PG Tape or Insulation Glass Cloth Tape, is an ideal product for electrical insulation. It is made of non-alkalic yarn which is prepreg into a resin. Each roll is 50m long and can be used for a variety of insulation projects.

This Glass Cloth Insulation Tape is highly durable and is resistant to temperatures up to 180°C. It is designed to provide superior protection against flame, chemical and moisture. It is perfect for sealing, wrapping, reinforcing, protecting and insulating electrical cords, wires and components. It is the perfect solution for any electrical insulation needs, providing superior performance and long-lasting protection.



  • Product Name: PG Insulation Banding Tape
  • Breaking Strenth: ≥2000N/10mm before curing
  • Temperature Range: H class, +180°C
  • Application: Electrical Insulation
  • Yarn type:  Non-alkalic
  • Width: 25mm
  • Keywords: Insulation Glass Cloth Tape, Glass Fabric Insulating Tape, Paraffin Type Non-alkalic Yarn Insulating Tape

Technical Parameters:

Property Value
Product Name PG Insulation Banding Tape
Material E-glassfiber
Color Beige
Temperature Range 180°C
Length 50m
Breaking Strenth ≥2000N/10mm X100mm
Width 25mm
Application Electrical Insulation
Thickness 0.3mm


Glass Cloth Insulation Tape – UN.TEX

UN.TEX PG Insulation Banding Tape is made of high-quality E-glassfiber material, prepreg by resin with excellent insulation performance and durability, it is a great choice for insulation, heat insulation, fireproofing, waterproofing, dustproofing, and soundproofing projects.

UN.TEX Glass Cloth Insulation Tape is highly recommended for electrical insulation, automotive insulation, high-temperature insulation, as well as other insulation applications. It is also perfect for sealing joints and seams in a wide range of industries, including, but not limited to, aerospace, electronics, and electrical engineering.

The Glass Fibre Insulation Tape from UN.TEX is made in China and has been tested to meet and exceed international standards. It is highly resistant to chemicals, acids, alkalis, temperatures of up to 180°C, and high-frequency electrical fields.


Packing and Shipping:

Glass Cloth Insulation Tape packaging and shipping:

The glass cloth insulation tape is typically packaged in a cardboard box with an internal plastic bag to protect the product from moisture and dust.  Additionally, the boxes may be labeled with a product description, lot no., and onto pallet.

The boxes will be shipped to customers via a third-party shipping company. The shipping company will use appropriate packaging materials and techniques to ensure the safe delivery of the product. Additionally, the shipping company will provide tracking information which will allow customers to monitor the progress of their shipments.
