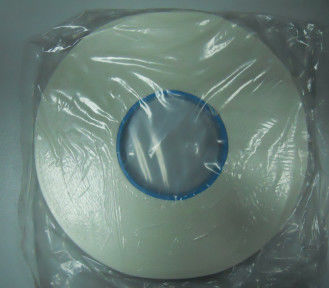

0.3mm Glass Cloth Insulation Tape H Class Polyester Resin Glass Banding Tape

MOQ: 6000m
Price: by quote
Standard Packaging: Export carton case
Delivery Period: 30 working days
Payment Method: L/C, T/T
Supply Capacity: 50,000m2 per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
No
Certification
RoHS
Model Number
H220-W
Resin Type:
Polyester Resin
Base Material:
E Glass Fiber
Thermal Grade:
H Class
Width:
25mm, 50mm
Length:
200m Or At Buyer's Request
Total Thickness:
0.3mm
Highlight:

0.3mm Glass Cloth Insulation Tape

,

Glass Cloth Insulation Tape H Class

,

Polyester resin glass banding tape

Product Description

Polyester resin impreganated glass banking tape

Type No.H220-W



Item Unit Standard value
Type   H200-W
Thermal class   H (200°C)
Volatile Content % ≤2
Loss of weight at calcination % 26±2
Soluble resin content % ≥90
Tensile strength before curing N/cm

0.2mm ≥1200

0.3mm ≥2000
Maximum pull while banding N/cm

0.2mm ≥600

0.3mm ≥1000
Tensile strength of ringlike sample at room temperature after curing Mpa 20°C ≥1250
Tensile strength of ringlike sample at working temperature after curing Mpa 200°C ≥900
Proof tracking index(PTI) V ≥500
Arc resistance S ≥160
Dielectric strength Kv/mm ≥12
Thermosetting   Easy peeling, non-sticky
Loss of tensile strength after soaked in oil % ≤10
