Product Details:
|
| Resin Type: | Polyester Resin | Base Material: | E Glass Fiber |
|---|---|---|---|
| Thermal Grade: | F Class | Width: | 10/15/20/25/30/50/60mm |
| Length: | 200m Or At Buyer's Request | Total Thickness: | 0.3mm |
| High Light: | 0.3mm high temp cloth tape,F Class high temp cloth tape,Polyester resiglass banding tape |
||

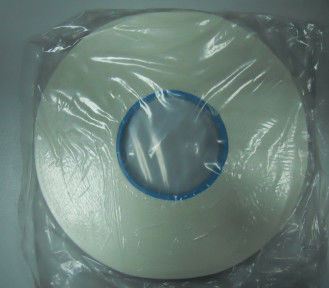

Polyester Resin Impregnated Glass Banding Tape,F Class, 0.3mm Thick, Electrical Insulation, PG Tape
Polyester resin impregated glass banding tape
Type: F150-G-W
| Item | Unit | Standard value |
| Type | F150-G-W | |
| Thermal class | F (155°C) | |
| Volatile Content | % | ≤2 |
| Loss of weight at calcination | % | 26±2 |
| Soluble resin content | % | ≥90 |
| Tensile strength before curing | N/cm |
0.2mm ≥1000 0.3mm ≥1500 |
| Maximum pull while banding | N/cm |
0.2mm ≥500 0.3mm ≥800 |
| Tensile strength of ringlike sample at room temperature after curing | Mpa | 20°C ≥1150 |
| Tensile strength of ringlike sample at working temperature after curing | Mpa | 200°C ≥900 |
| Proof tracking index(PTI) | V | ≥500 |
| Arc resistance | S | ≥160 |
| Dielectric strength | Kv/mm | ≥12 |
| Thermosetting | Easy peeling, non-sticky | |
| Loss of tensile strength after soaked in oil | % | ≤10 |
,
