Product Details:
|
| Adhesive Type: | Acrylic Pressure Sensitive Adhesive | Backing Thickness: | 25 Micron/1.0 Mil |
|---|---|---|---|
| Heat Resistant: | B Grade | Base Material: | Biaxially Oriented Polyester Film |
| High Light: | Colorful pet heat resistant double sided tape,pet heat resistant double sided tape B Grade,25 Micron Heat Resistant Tape |
||

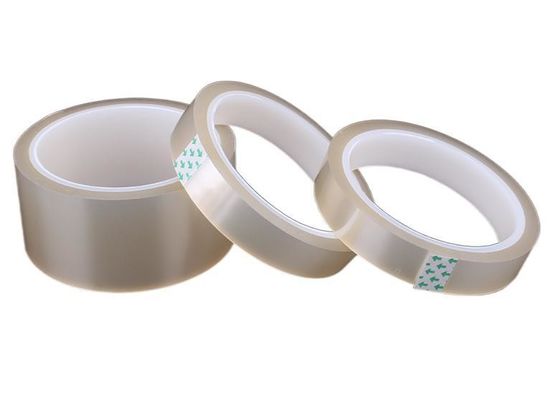

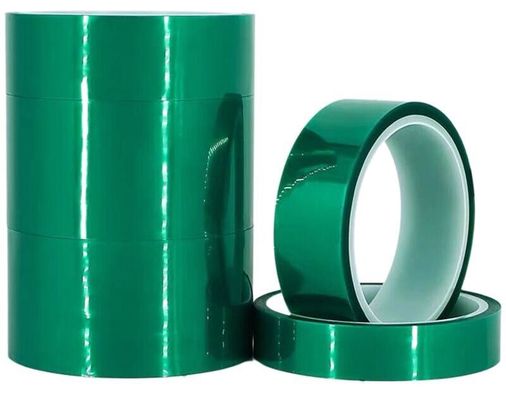

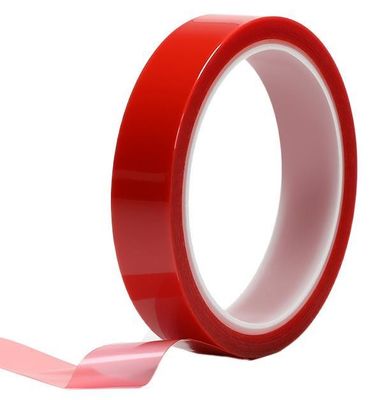

Heat insulation colorful PET film adhesive tape, acrylic pressure sensitive adhesive
PET Insulation tape is used for coil wrapping of motors and electronic transformers, capacitor dielectric fixing, motor lead wire bundling,
And other electrical products that need insulation wrapping and marking.
White and black products are opaque and act as cursor tracking signs.
Base material: biaxially oriented polyester film
Adhesive: preferably imported improved acrylic pressure sensitive adhesive
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Film Thickness | 25 Micron | 1.0 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 55 Micron | 2.4 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 8 N/25mm | 28.8 Oz./In. | PSTC-101 / ASTM D 3330 |
| BDV | 3 kV | ||
| Tensile Strength | 40N/10mm | ||
| Elongation | 55% | 55% | PSTC-131 / ASTM D 3759 |
| Dielectric Loss | 0.98 | ------------ | |
| Heat-resistant class | B grade | ------------ |
