Product Details:
|
| Adhesive Type: | Acrylic Pressure Sensitive Adhesive | Backing Thickness: | 25 Micron/1.0 Mil |
|---|---|---|---|
| Heat Resistant: | B Grade | Tensile Strength: | 40 N/10mm |
| Base Material: | Biaxially Oriented Polyester Film | Colors: | Transparent, Yellow, White, Black Etc. |
| High Light: | Red PET Adhesive Tape,PET Adhesive Tape 25 Micron,B Grade double sided pet tape |
||

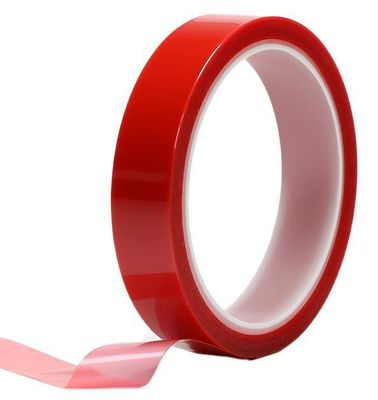

PET Adhesive Tape Colorful Film Acrylic Pressure Sensitive Adhesive B Grade
PET Insulation tape is used for coil wrapping of motors and electronic transformers, capacitor dielectric fixing, motor lead wire bundling,
And other electrical products that need insulation wrapping and marking.
White and black products are opaque and act as cursor tracking signs.
Base material: biaxially oriented polyester film
Adhesive: preferably imported improved acrylic pressure sensitive adhesive
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Film Thickness | 25 Micron | 1.0 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 55 Micron | 2.4 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 8 N/25mm | 28.8 Oz./In. | PSTC-101 / ASTM D 3330 |
| BDV | 3 kV | ||
| Tensile Strength | 40N/10mm | ||
| Elongation | 55% | 55% | PSTC-131 / ASTM D 3759 |
| Dielectric Loss | 0.98 | ------------ | |
| Heat-resistant class | B grade | ------------ |
TYPICAL APPLICATIONS
Primarily used for connect, join, seal and patch flexible air ducts and air connectors, can also be used in metal and metal connections.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll: 5mm ~ 1000mm.
IMPORTANT NOTE
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
