Product Details:
|
Material: | Cold Weather Solvent Acrylic Adhesive | Backing Thickness: | 0.050mm |
---|---|---|---|
Total Thickness: | 0.090mm | Service Temperature: | -20 ~ +80 °C |
Cut Roll Width: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") | Backing Material: | Scrim Reinformed Al Foil 25um |
Scrim Size: | 5mmx5mm | Releasing Paper: | White Silicone Paper |
High Light: | Aluminum foil scrim kraft insulation,foil scrim kraft insulation 2 Way,Cold Weather scrim kraft |

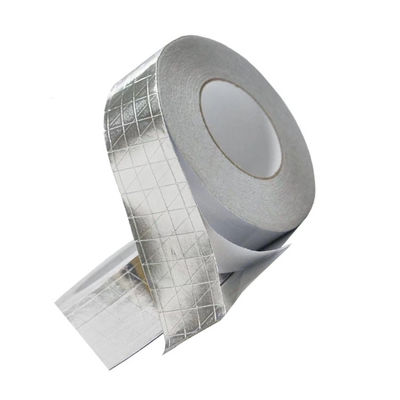

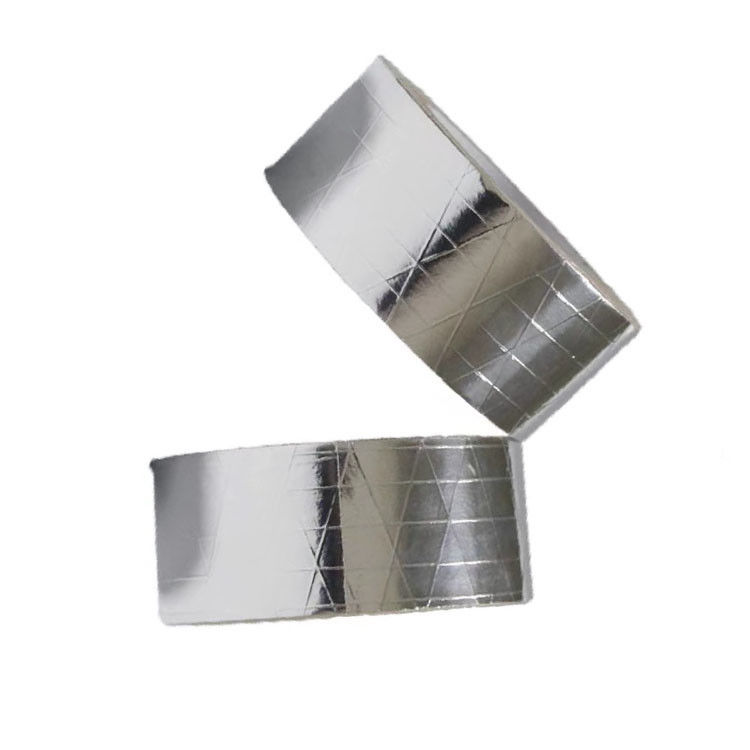

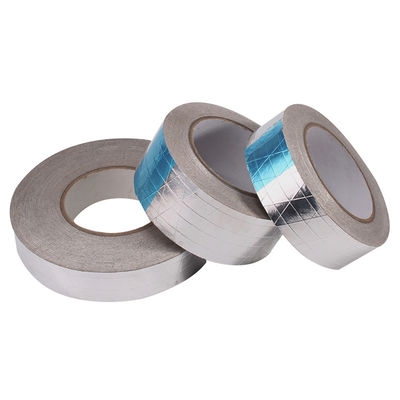

Cold Weather Tape FS2825B/CW
Aluminum Foil-Scrim Adhesive 2-Way Solvent Acrylic Adhesive Cold Weather Use
High Quality Foil-Scrim-PE Tape suitable for rough surface, high adhesive strength with big adhesive volume
PRODUCT DESCRIPTION
Foil-Scrim backing (Foil: 25u / 2-way Scrim: 5mmx5mm ), combined with a high performance Solvent acrylic adhesive, protected by an easy-release silicone release paper.
TYPICAL PHYSICAL PROPERTIES
PROPERTIES | METRIC | TEST METHOD |
Backing Thickness | 0.050mm | PSTC-133 |
Total Thickness | 0.090mm | PSTC-133 |
Tensile strength | 120N/25mm | PSTC-131 |
Elongation | 3% | PSTC-131 |
Adhesion to Steel | ≥15N/25mm | PSTC-101 |
Ball Tack | 5cm | PSTC-6 |
Service Temperature | -30 ~ +120 °C | ------------ |
Applying Temperature | +10 ~ 40 °C | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim Facing laminated fiberglass blanket / duct board/ pipe section joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
