Product Details:
|
| Adhesive Type: | High Performance Solvent Acrylic Adhesive | Service Temperature Range: | -30 ~ +120 °C |
|---|---|---|---|
| Backing Thickness: | 0.125mm | Cut Roll Width: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4"). |
| Scrim: | PE Mesh | Backing Material: | PE Mesh Reinformed Al Foil 7um |
| Releasing Paper: | White Releasing Paper | ||
| High Light: | 0.125mm self adhesive aluminium foil,self adhesive aluminium foil 0.125mm,0.125mm aluminium insulation tape |
||

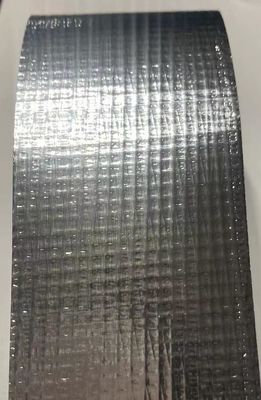

High Quality Foil-PE Mesh Tape
PRODUCT DESCRIPTION
Foil-PE mesh backing combined with high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.
FEATURES
• Foil-PE Mesh backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-PE mesh Facing joints and seams sealing in HVAC ductwork application.
• Low moisture vapor transmission rate makes FEM7225A an excellent vapor barrier.
• Service Temperature range from -30 ~ +120 °C (-22~ +248 °F).
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 0.125mm | PSTC-133 |
| Total Thickness | 0.175 mm | PSTC-133 |
| Tensile strength | 100N/25mm | PSTC-131 |
| Adhesion to Steel | ≥20 N/25mm | PSTC-101 |
| Ball Tack | 20cm | PSTC-6 |
| Service Temperature | -30 ~ +120 °C | ------------ |
| Applying Temperature | +10 ~ 40 °C | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-PE mesh Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing industrial pipe insulation’ seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1000mm,1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 500m / 750m
