Product Details:
|
| Adhesive Material: | High Performance Flame Retardant Solvent Acrylic Adhesive | Backing Thickness: | 0.150mm |
|---|---|---|---|
| Total Thickness: | 0.200mm | Service Temperature: | -20 ~ +80 °C |
| Cut Roll Width: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") | Backing Material: | All Service Jacket |
| Scrim Size: | 3-way | Releasing Paper: | White Releasing Paper |
| High Light: | Flame Retardant foil scrim kraft insulation,foil scrim kraft insulation 0.15mm,0.15mm fsk foil tape |
||

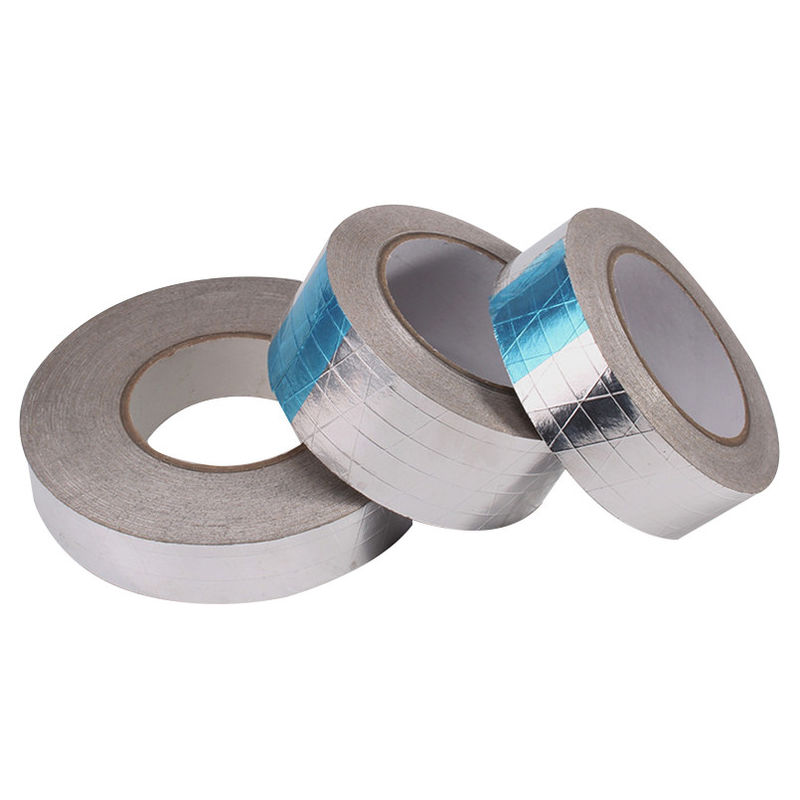

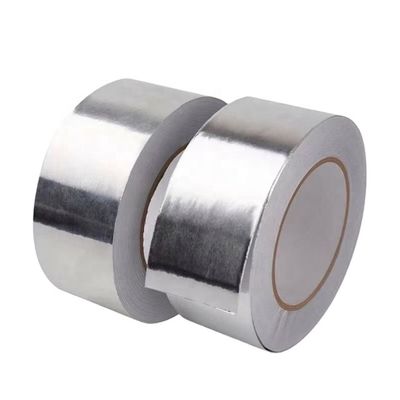

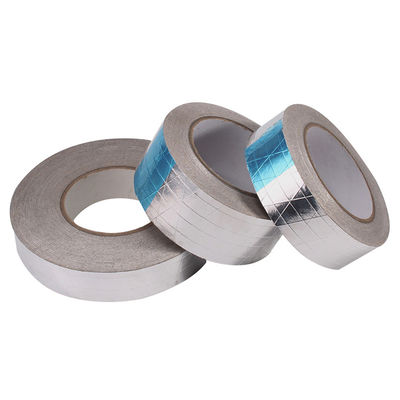

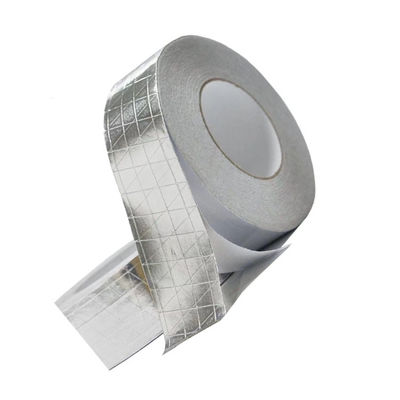

ASJ Tape Matching All Service Jacket F/R Grade Flame Retardant
PRODUCT DESCRIPTION
Foil-Scrim-PE F/R grade ASJ(All service jacket)backing coated with a high performance flame retardant solvent acrylic adhesive,protected by an easy-release silicone release paper.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | TEST METHOD |
| Backing Thickness | 0.150 mm | PSTC-133 |
| Total Thickness | 0.200 mm | PSTC-133 |
| Tensile strength | 215N/25mm | PSTC-131 |
| Adhesion to Steel | ≥20N/25mm | PSTC-101 |
| Ball Tack | 15cm | PSTC-6 |
| Service Temperature | -20 ~ +80 °C | ------------ |
| Applying Temperature | +10 ~ 40 °C | ------------ |
TYPICAL APPLICATIONS: for joining and sealing of ASJ faced mechanical insulation system, and providing a matching appearance and vapor retarder integrity.
PRODUCT FORM & SIZE AVAILABLE
Cut Roll width: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4").
Roll width:1200mm
Length: Log roll: 45 / 50m Jumbo Roll: 750m/800m
