Product Details:
|
| Base Material: | Imported Glass Cloth | Adhesive Type: | Silicone Adhesive |
|---|---|---|---|
| Grade: | H Grade | Releasing Paper: | No |
| Base Cloth Thickness: | 0.05mm | Tape Thickness: | 0.13mm |
| Color: | Brown And Black Or On Request | Working Temp: | 220°C Long Time, 280°C Short Time |
| Width: | 3mm~1200mm | Length: | 10m & 30m |
| High Light: | Chemical Resistant ptfe cloth tape,Non Sticking ptfe cloth tape,0.13mm high temperature cloth tape |
||

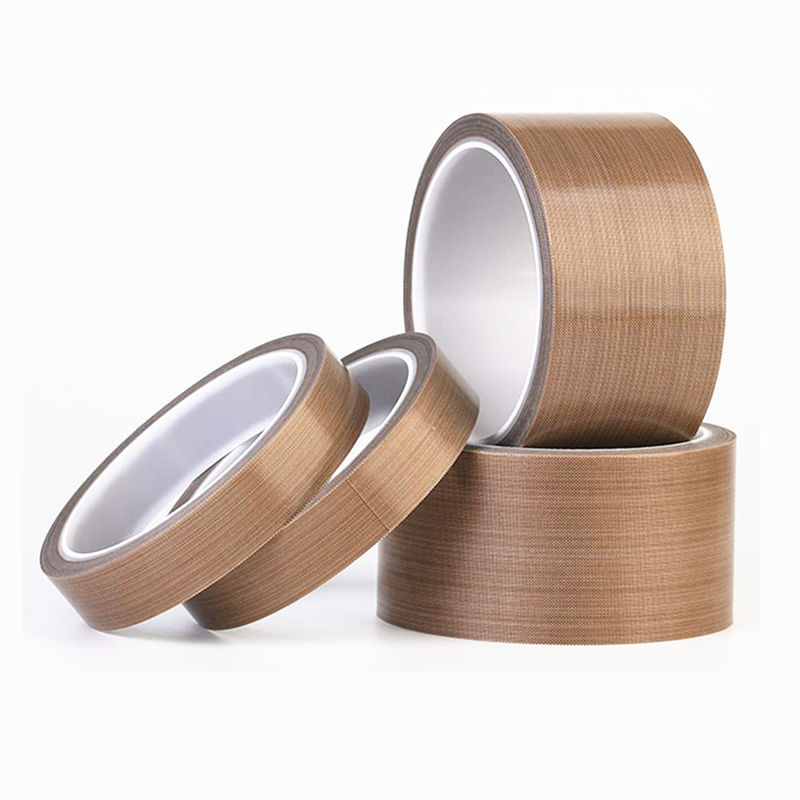

PTFE Glass cloth adhesive tape
Type # 8013TF-S
Base cloth: Imported E-glass cloth treated by PTFE emulsion
Adhesive: Silicone adhesive
Coating: Single side coated
Property
| Item | Unit | Standard valvue | Test method standard |
| Base thickness | mm | 0.06± 0.005 | ASTM D-3652 |
| PTFE coating Thickness | mm | 0.02± 0.005 | ASTM D-3652 |
| Silicone adhesive Thickness | mm | 0.05± 0.005 | ASTM D-3652 |
| Total thickness | mm | 0.13±0.005 | ASTM D-3652 |
|
Adhesive strength (to steel plate) |
N/100mm | 20 | ASTM D-3330 |
| Tensile strength | N/100mm | 820 | ASTM D-3759 |
| Elongation | ‰ | <5 | ASTM D-3759 |
| Surface friction coefficient | 0.05~0.1 | ||
| Electric resistance | Ω | ≧ 1012 | |
| Temperature resistance | ℃ | -70~260 | |
| Color | Brown and black, or according buyer’s request | ||
Product Features:
■ Working in the environment of -70℃~260℃, viscosity stable, working temperature 280℃ Maximum;
■ Non-sticking: smooth surface, easy to clean, oil non-stainable.
■ chemical corrosion resistance, acid and alkali resistance;
■ Electrical insulating and long service life.
