Product Details:
|
| Base Material: | Aramid Adhesive Tape | Adhesive Type: | Acrylic Adhesive |
|---|---|---|---|
| Thickness: | 0.10mm | Width: | 10mm~980mm |
| High Light: | F Class Adhesive Insulation Tape,Adhesive Insulation Tape 0.10mm,Aramid Paper high temperature electrical insulation tape |
||

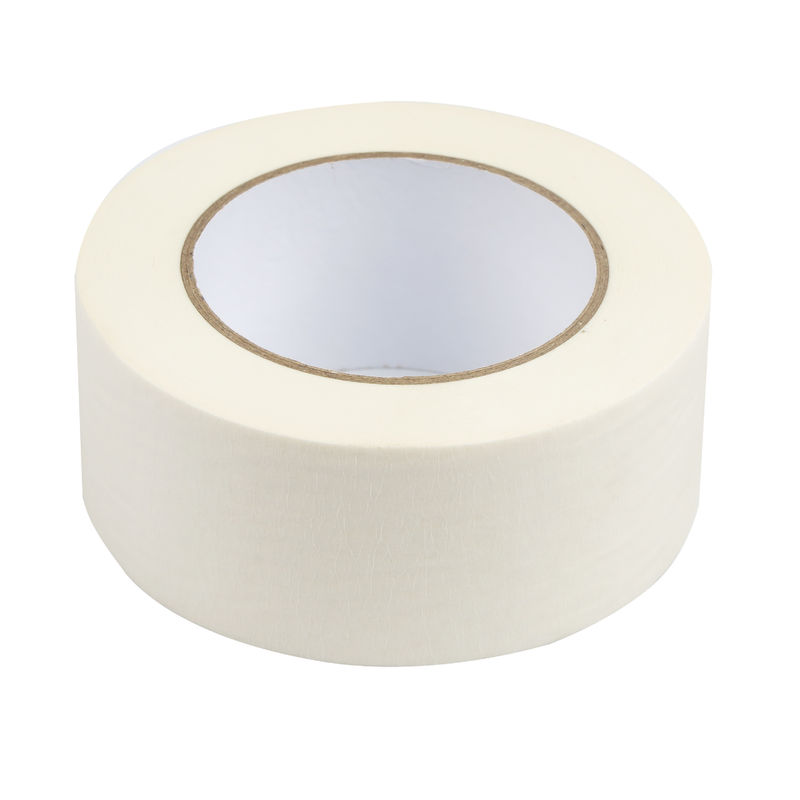

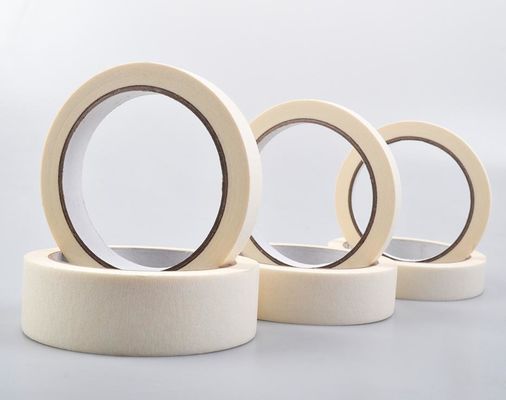

Aramid paper adhesive tape, used as replacement of Nomex adhesive tape
TX2 series aramid paper high temperature resistant tape
Applications:
※ For high-quality F-class motor and transformer coil end wrapping.
※ It is resistant to chemical corrosion and can be used for insulating wrapping of high-energy lithium batteries, punching of mobile phone accessories, etc.
※ It is used for wrapping and insulating electronic coils of electronic transformers such as HVT and HID.
Typical properties:
| Type | 432 | ||
| Appearance | White paper tape, smooth surface, no wrinkles, bubbles, glue particles and impurities, no glue leftover and layer transfer phenomenon when unwinding | ||
| Total thickness mm±mm | 0.105±0.01 | ||
| Aramid paper Thickness mm±mm | 0.06±0.005 | ||
| Adhesive type | Flame Retardant Acrylic Pressure Sensitive Adhesive | ||
| Breakdown voltage kV | ≥1.8 | ||
| Tensile strength N/10mm | ≥30 | ||
| Elongation at break % | ≥4 | ||
| Adhesion (to steel surface) N/25mm | ≥12.0 | ||
| Ball tack cm | ≤10 | ||
| Heat resistance test 155℃/45min | No tilting on tape end | ||
| Long-term temperature resistance | F class/155℃ | ||
| Flame Retardant | Meet UL510 Flame Retardant | ||
| Supply size Available | in rolls, roll width 10～980mm According to user requirements, roll length 50m±0.5m | ||
