Product Details:
|
| Available Roll Width: | 0.92m, 1.22m, 1.25m | Structure: | Al Foil+ Scrim + White Craft Paper |
|---|---|---|---|
| Total Weight: | 120g/m2 | Scrim: | 3-way Fiberglass Scrim |
| Al Foil: | 7um | ||
| High Light: | Flame Retardant Foil Faced Kraft Paper,Foil Faced Kraft Paper 0.92m,1.25m foil backed paper insulation |
||
Flame-Retardant All Service Jacket FSK Shield Foil Faced White Kraft Paper
Product Description

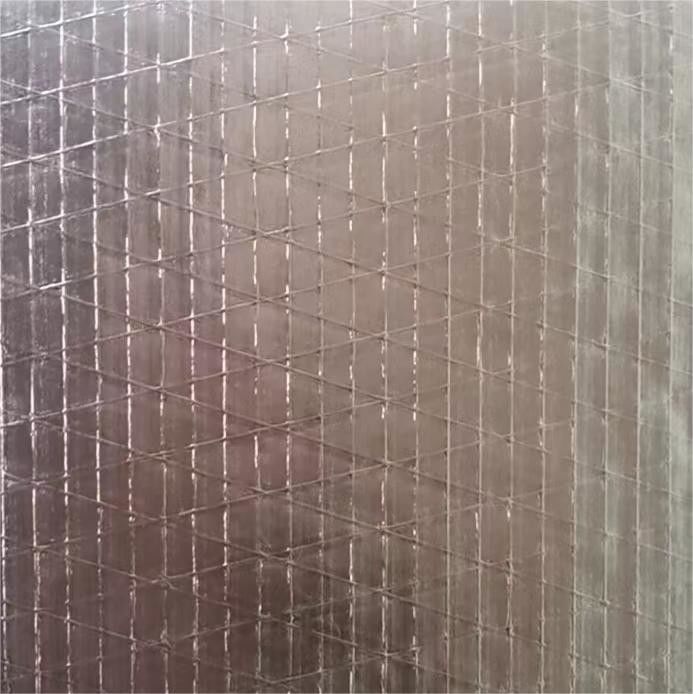

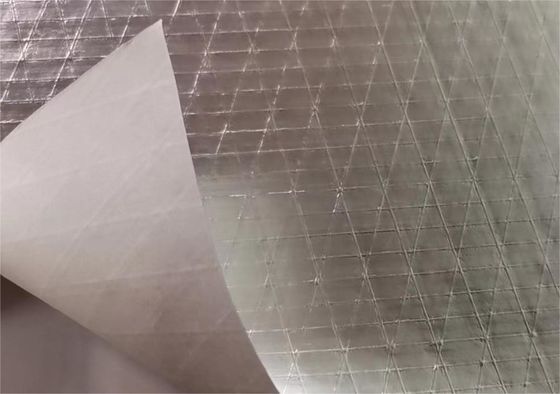

A F/R grade all service Jacket. It consists of aluminium foil, closer 3-way scrim and white kraft paper(F/R treated), laminated with Flame-retardant adhesive. It is mainly used as a facing and jacket of piper insulation.
Facing Composition
| Facing Composition | Description | Value (Metric) |
| Foil | Aluminum | 7 micron |
| Reinforcing - MD | Fiberglass | 16/100 mm |
| Reinforcing - XD | Fiberglass | 16/100 mm |
| Adhesive | Frame-retardant | ------ |
| White Kraft | F/R treated | 80gsm |
Typical Physical Properties
| Physical Properties | Value (Metric) | Test Method |
| Basis Weight | 120±10% gsm | Scale |
| Permeance (WVTR) | 1.15 ng/N.s | ASTM E96, Procedure A |
| Tensile Strength - MD | ≥180 N/25mm | ASTM D828 |
| Tensile Strength - XD | ≥100 N/25mm | ASTM D828 |
| Burst Strength | ≥50 N/cm2 | ASTM D774 |
| Low Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @-40 °F (- 40 °C) |
| High Temperature Resistance |
Remains Flexible No Delamination |
ASTM D1790 4 hrs @ +240 °F (+116 °C) |
| Dimensional Stability | Less than 0.5% | ASTM D1204 @ 150F (65C) |
| Emissivity | 0.03 | ASTM E408 |
| Fire Rating | Less 25/50 - Passed | UL 723 / ASTM E84 |
| Fire Rating | Class O - Passed | BS 476 Pt 6 & 7 |
Available Roll Width: 0.92m, 1.22m, 1.25m
Remarks
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: +0.5m/-0m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature, kept away from wet and heat source.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
