Product Details:
|
| Backing Thickness: | 30um | Service Temperature: | -30 +120 C |
|---|---|---|---|
| ROLL LENGTH:: | 50M / 45M | ROLL WIDTH:: | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") |
| Total Thickness: | 70um | Adhesive Type: | High Performance Solvent Acrylic Ahesive |
| Liner: | Blue Polyethylene(PE) Film | ||
| High Light: | 30um Aluminum Foil Adhesive Tape,Aluminum Foil Adhesive Tape 30um,30um aluminium foil sealing tape |
||

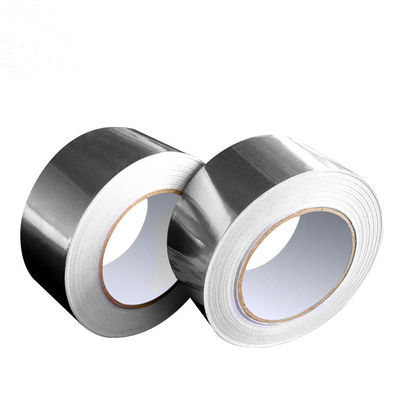

Aluminum Foil Tape with blue PE liner HVAC joining and sealing ductwork
PRODUCT DESCRIPTION

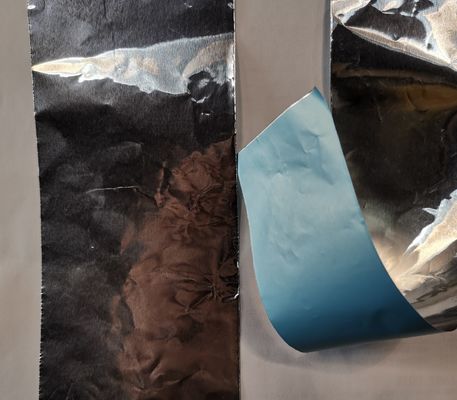

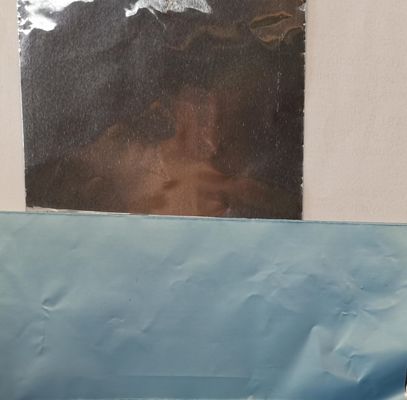

A 30 micron (1.2 mil) high tensile strength aluminum foil backing, combined with high performance solvent acrylic adhesive, protected by an easy-release silicone coated blue polyethylene (PE) liner.
FEATURES
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in HVAC ductwork application.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
• Blue PE liner, easy recycling and environment friendly.
TYPICAL PHYSICAL PROPERTIES
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 30 Micron | 1.2 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 70 Micron | 2.8 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 18 N/25mm | 65 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tack Rolling Ball | 20 cm | 8.0 In. | PSTC-6 / ASTM D 3121 |
| Tensile Strength | 45 N/25mm | 10.2 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | 3.0 % | 3.0 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -30 ~ +120 °C | -22 ~ +248 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. General purpose holding, patching, sealing and masking applications – indoors and outdoors.
PRODUCT FORM & SIZE AVAILABLE
ROLL WIDTH: 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
ROLL LENGTH: 1200mm x 50M / 45M
IMPORTANT NOTE
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%.
STORAGE & SHELF LIFE: 12 months when stored at 21°C (70°F) / 50% relative humidity out of direct sunlight.
