Product Details:
|
| Base Material: | Imported Glass Cloth | Adhesive Type: | Silicone Adhesive |
|---|---|---|---|
| Grade: | H Grade | Releasing Paper: | No |
| Base Cloth Thickness: | 0.12mm | Tape Thickness: | 0.18mm |
| High Light: | Electrical Insulation Glass Cloth Adhesive Tape,Glass Cloth Adhesive Tape 0.18mm,H Grade silicone double sided adhesive tape |
||

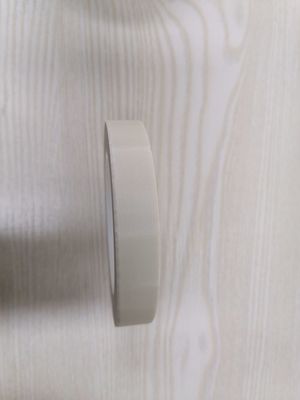

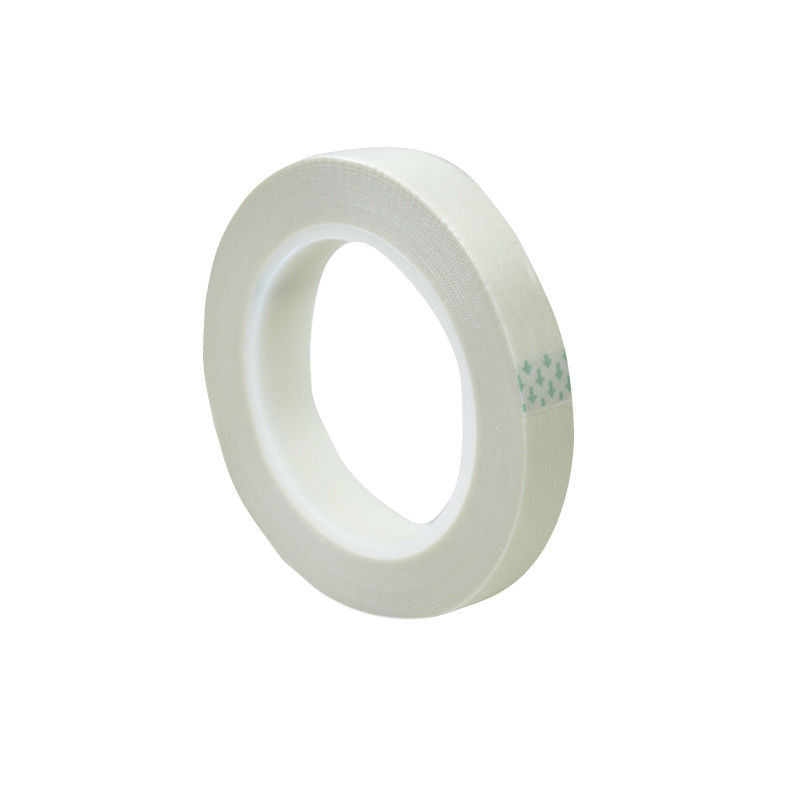

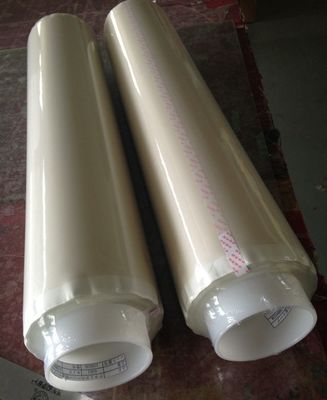

Glass Cloth Adhesive Tape ,H Grade ,Silicone Adhesive Tape , 0.18mm Thick, Electrical Insulation
Glass cloth adhesive tape
Type # 6361
Base cloth: Imported E-glass cloth
Adhesive: Silicone adhesive
Coating: Single side coated
Charactor:
1. Stable during long time heating. Long time working temperature: 180°C,short term temperature: 200°C.
2. Flexible and tear resist, good adhesive strength,not easy deformation. Suitable for sticking protection on the surface of various profiles.
3. High mechanical strength, suitable for tight and firm coil wrapping.
Application:
1. H-class motor and transformer coil lead wire wrapping
2. Explosion-proof and anti-leakage, widely used for insulation and wrapping of lithium manganese batteries
3. High temperature sandblasting protection, thermal insulation shielding protection.
Typical technical data:
|
1 |
Base cloth Thicness |
mm |
0.120±0.01 |
0.129 |
|---|---|---|---|---|
|
3 |
Tape thickness |
mm |
0.180±0.01 |
0.181 |
|
4 |
BDV |
KV |
≥2.5 |
2.7 |
|
5 |
Tensile strength |
N/10mm |
≥210 |
237 |
|
6 |
Elongation |
% |
≥3 |
4 |
|
7 |
Adhesion strength to steel plate |
N/10mm |
≥3.8 |
4.1 |
|
8 |
Heating 260°C/30min |
No deformation, No tape end backturn |
||
|
9 |
Thermal grade |
H |
||
